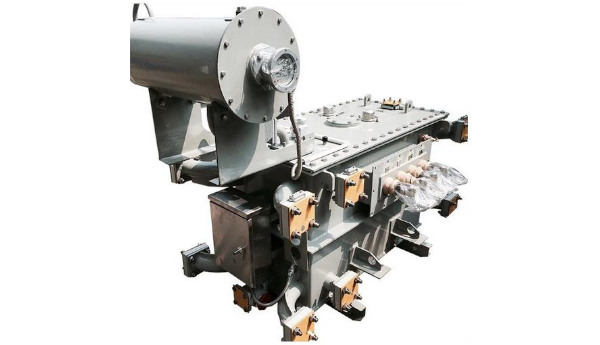

800kVA 0.400/6.6kV ONAN Aluminium wound Transformer

800kVA 0.400/6.6kV ONAN Aluminium wound Transformer Rental Perth

Tapping Range: -5% to +5% in 2.5% step (Off Load Tap changer on HV side)
Windings: Aluminium
HV / LV Bushings: Cable Box from sides
Tank Painting: RAL 7033 (Non-Galvanized)
Transformer Oil: Mineral Oil
Operation Mode: CONTINUOUSLY
Accessories (Standard): Thermometer with Double Contacts, Marking Plate, Earthling Terminal on Tank, Lifting Lugs, Oil Level Indicator with Contact, Terminal Box, Thermometer Pocket, , Drain Valve, Pressure Relief Valve with Contact.
Ambient Temp: 45degree C
Type of Cooling: ONAN
Vector Group: Dyn11
Number of Phase: 3
Impedance: Approx. 5%
Input / Output Frequency: 50 Hz
