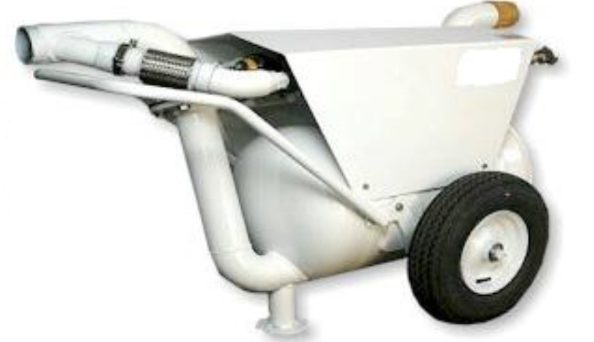

Slurry Blowing Pump SBP60

Slurry Blowing Pump SBP60 Rental Perth

Slurry Blowing Pump 60 (SBP 60) System is designed to offer a safe and efficient means of containment of all drill cuttings waste from both onshore and offshore drilling operations.

Operation is automatic. SBP60 can be wheeled into position under most conditions.

Suction lengths of 10 meters and discharges of 50 meter are achievable with this pump.

Features:

60 l Capacity
Intrinsically Safe
Readily Mobile
Fully Automatic
Handles trues solids to 60mm
Delivers over 21.5” of vacuum
Recover from 10 meters
Discarge in excess of 50 meters
Simple maintenance and operation

Specifications:

Inlet – 3” Camlock fitting
Outlet – 3” Victaulic fitting
Uplift Hose – 3” Diameter (plated full vacuum)
Discharge Hose – 3” Diameter (mwp 10 bar)
Variable Timer: 0-60 seconds
Gross Weight: 195kg
Utility requirement: Air (104cfm at 8bar)
Dimentsions: 1,400mm x 650mm x 780mm
