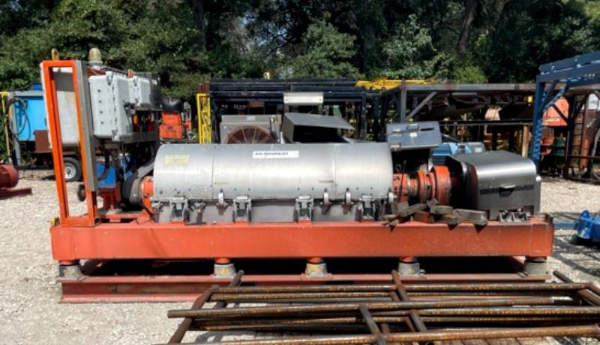

Big Bowl Centrifuge with PLC Controls

Big Bowl Centrifuge with PLC Controls Rental Perth

High volume design for very low gravity solids (LGS) and barite recovery.) 6-degree /beach angle, 150mm, 5.9″ single lead STC-tiled 304SS conveyor, hydraulic main drive and back drive, guards, feed tube, bearing lube system, vibration switch/isolators and chutes with PLC controls and ancillary tanks, pumps on skid-mounted base.

Features:

Max bowl speed 2600 RPM
2229 x G, 598 x 2020mm, 23.54 x 79.53″ bowl ID
Hydraulic capacity 792 GPM (180 m3/h)
max solids discharge rate 125 GPM (28.5 m3/h
132 KW XP motor 400/460/3/50/60
80:1 11 kNm gearbox
