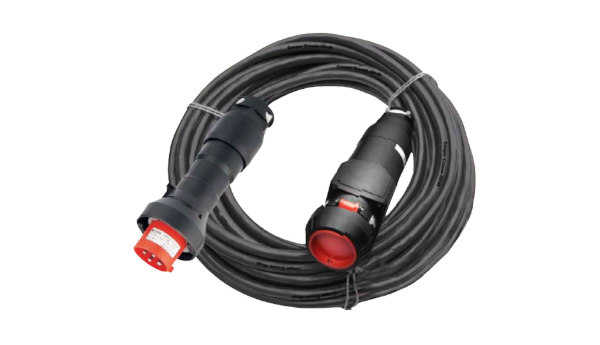

32A EX-Temporary Power Power Entension Lead

32A EX-Temporary Power Power Entension Lead Rental Perth

Our 32A Ex-Power Extension Leads are IECEx certified for the temporary installation of electrical maintenance such as light fittings, temporary pumps or other electrical apparatus in explosive/hazardous environments. Our robust plugs and receptacles fulfils the highest standards in mechanical and chemical resistance.

Features:

ATEX/IECEx-certified for gas- and dust atmospheres (Zone 1, 2, 21 and 22)
Compact, flexible and portable Configuration
Effortless plug-in operation
High degree of protection IP66, even when plugged
Glove Operation
Lockable against unauthorised use
All-embracing IECEx Certificate of Conformity

Specifications:

Zone Rating: Zone 1, 2, 21 & 22
IECEx Certificate of Conformity: IECEx BKI 04.0004
Rated Current: 32A
Voltage: 380-480V
Permissible Ambient Temperature: -20C up to +55C
Frequency: 50/60 Hz
Pin Arrangement: 3P+N+E/3P+E
Degree of protection accd. To EN 60529: IP66
Connecting Cable: HO7RN-F
Plug Options: CEAG, STAHL
Socket Options: CEAG, STAHL
Length: 20m or 30m
