Shakers (VSM 300)

Shakers (VSM 300)

CONTACT FOR ENQUIRIES

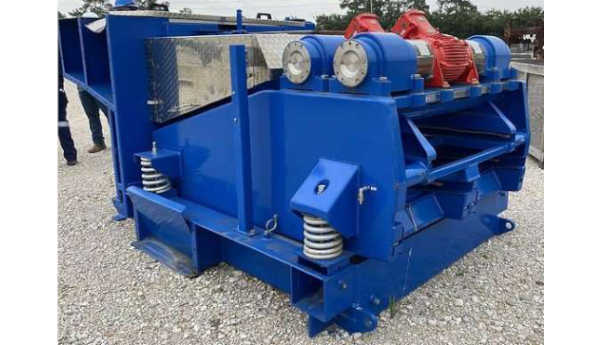

The VSM 300 Shale Shaker is designed to meet the demands of the oilfield drilling industry and is purpose built to provide a more efficient primary solids removal system.

The VSM 300’s unique drive motion delivers significant improvements in the transportation of large, sticky, hydrated clays, which are often encountered when drilling tophole sections with water-based muds.

Supplied in modular form, the VSM 300 can be assembled onsite to produce a multiple-unit setup. This, along with the unit’s high capacity, dramatically reduces weight, capital expenditures, installation expenses and operating costs.

Features:

  • Dimensions: 2754x1870x1505
  • Weight 2436kg
  • Weir Height: 991mm
  • G Force: 4.6 or 8G’s (Adjustable)
  • Vibration Motion: Balanced Eliptical
  • Motor quantity: 2
  • Motor Power (Each): 3kW
  • Electrical Voltage/Phase/Frequency: 380-160 VAC/3Phase/50Hz
  • Air Connection/Pressure/Capacity: Single-point/85- 90psi/0.014m3/min
