Brandt HD4800 Mud Cleaning/Drilling Fluid system
Brandt HD4800 Mud Cleaning/Drilling Fluid system Rental Perth

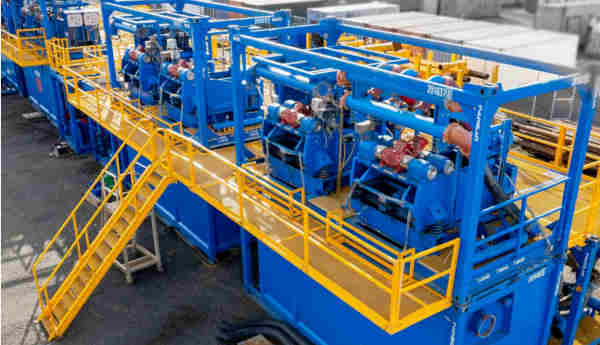

CONTACT FOR ENQUIRIESThe Modular Drilling Fluid Tank System is a processing system designed to each mix, store, and clean viscous drilling fluids at flow rates of up to 1500 GPM and consistently return clean drilling fluids. The system is set up such that fluid from the drill flows across the scalping deck of all the VSM 300 shakers, to remove solids that are large enough to damage the pumps and associated equipment and fittings. Then the fluid enters one side of the Recycle tank below the shaker module. New and active mud is stored in tank modules fitted with high velocity agitators.
Features:
- Average operating capacity: 1,000 – 1,2000 gpm
- Handles 100% of circulating volume
- Removes solids larger than 74 μm
- Separation by straining through screen
- Meets Australian Standards
Standard Package Includes:
- 8 shaker skids (4×2 shakers per skid) with (desilter/ desander)
- x 4 Agitator mixing tanks with x2 Mission Magnum centrifugal pumps and valves per tank.
- x 4 recycle tanks with Mission Magnum centrifugal pumps and valves per tank.
- x 2 Pump Skids with x4 Mission Magnum centrifugal pumps and valves per unit.
